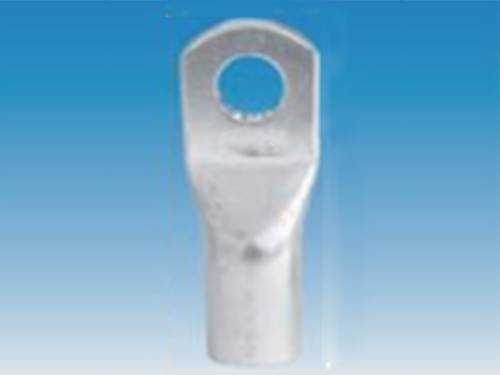

GPH 铜管端子
-
咨询热线：0769-87330059
服务热线：18925865191
产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片， 两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接， 有时又需要断开， 这时就可以用端子把它们连接起来， 并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0011-0001 |
GPH1.5-3 |
3.2 |
3.3 |
1.8 |
6.5 |
6.0 |
15.5 |
|
LY0011-0002 |
GPH1.5-4 |
4.3 |
3.3 |
1.8 |
6.5 |
6.0 |
17.5 |
|
LY0011-0003 |
GPH1.5-5 |
5.3 |
3.3 |
1.8 |
9.0 |
6.0 |
19.0 |
|
LY0011-0004 |
GPH1.5-6 |
6.4 |
3.3 |
1.8 |
9.0 |
6.0 |
22.5 |
|
LY0011-0005 |
GPH2.5-4 |
4.3 |
4.2 |
2.2 |
7.5 |
6.0 |
17.1 |
|
LY0011-0006 |
GPH2.5-5 |
5.3 |
4.2 |
2.2 |
8.5 |
6.0 |
19.2 |
|
LY0011-0007 |
GPH2.5-6 |
6.4 |
4.2 |
2.2 |
9.5 |
6.0 |
22.8 |
|
LY0011-0008 |
GPH2.5-8 |
8.4 |
4.2 |
2.2 |
13.0 |
6.0 |
28.0 |
|
LY0011-0009 |
GPH4-4 |
4.3 |
5.0 |
3.0 |
8.5 |
8.0 |
21.8 |
|
LY0011-0010 |
GPH4-5 |
5.3 |
5.0 |
3.0 |
9.0 |
8.0 |
22.2 |
|
LY0011-0011 |
GPH4-6 |
6.4 |
5.0 |
3.0 |
10.0 |
8.0 |
22.2 |
|
LY0011-0012 |
GPH6-5 |
5.3 |
6.5 |
3.5 |
10.0 |
11.0 |
28.2 |
|
LY0011-0013 |
GPH6-6 |
6.4 |
6.5 |
3.5 |
12.0 |
11.0 |
29.1 |
|
LY0011-0014 |
GPH6-8 |
8.4 |
6.5 |
3.5 |
15.0 |
11.0 |
31.8 |
|
LY0011-0015 |
GPH6-10 |
10.5 |
6.5 |
3.5 |
17.0 |
11.0 |
37.0 |
|
LY0011-0016 |
GPH10-5 |
5.3 |
7.0 |
4.5 |
12.0 |
11.0 |
28.1 |
|
LY0011-0017 |
GPH10-6 |
6.4 |
7.0 |
4.5 |
12.0 |
11.0 |
29.0 |
|
LY0011-0018 |
GPH10-8 |
8.4 |
7.0 |
4.5 |
14.5 |
10.0 |
33.3 |
|
LY0011-0019 |
GPH10-10 |
10.5 |
7.0 |
4.5 |
16.0 |
11.0 |
36.9 |
|
LY0011-0021 |
GPH16-5 |
5.3 |
8.5 |
5.5 |
12.0 |
14.0 |
33.1 |
|
LY0011-0022 |
GPH16-6 |
6.4 |
8.5 |
5.5 |
12.5 |
14.0 |
33.5 |
|
LY0011-0023 |
GPH16-8 |
8.4 |
8.5 |
5.5 |
13.8 |
14.0 |
38.0 |
|
LY0011-0024 |
GPH16-10 |
10.5 |
8.5 |
5.5 |
17.0 |
14.0 |
42.0 |
|
LY0011-0025 |
GPH16-12 |
13.2 |
8.5 |
5.5 |
20.0 |
14.0 |
44.5 |
|
LY0011-0026 |
GPH25-6 |
6.4 |
10.0 |
7.0 |
14.0 |
15.0 |
34.6 |
|
LY0011-0027 |
GPH25-8 |
8.4 |
10.0 |
7.0 |
16.0 |
15.0 |
39.0 |
|
LY0011-0028 |
GPH25-10 |
10.5 |
10.0 |
7.0 |
18.0 |
15.0 |
44.5 |
|
LY0011-0028 |
GPH25-12 |
13.2 |
10.0 |
7.0 |
20.0 |
15.0 |
47.0 |
|
LY0011-0029 |
GPH35-6 |
6.4 |
12.0 |
8.5 |
16.7 |
16.0 |
38.0 |
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0011-0030 |
G P H 3 5 - 8 |
8.4 |
12.0 |
8.5 |
17.5 |
17.0 |
43.0 |
|
LY0011-0031 |
GPH 35 - 10 |
10.5 |
12.0 |
8.5 |
18.5 |
16.0 |
46.0 |
|
LY0011-0032 |
GPH 35 - 12 |
13.2 |
12.0 |
8.5 |
21.3 |
16.0 |
50.0 |
|
LY0011-0033 |
G P H 5 0 - 8 |
8.4 |
14.0 |
10.0 |
21.0 |
19.0 |
47.0 |
|
LY0011-0034 |
GPH 50 - 10 |
10.5 |
14.0 |
10.0 |
21.0 |
19.0 |
51.2 |
|
LY0011-0035 |
GPH 50 - 12 |
13.2 |
14.0 |
10.0 |
21.5 |
19.0 |
52.0 |
|
LY0011-0036 |
G P H 7 0 - 8 |
8.4 |
16.5 |
12.0 |
23.2 |
21.0 |
52.0 |
|
LY0011-0037 |
GPH 70 - 10 |
10.5 |
16.5 |
12.0 |
23.2 |
21.0 |
52.0 |
|
LY0011-0038 |
GPH 70 - 12 |
13.2 |
16.5 |
12.0 |
23.2 |
21.0 |
55.7 |
|
LY0011-0039 |
G P H 9 5 - 8 |
8.4 |
18.0 |
13.5 |
25.6 |
25.0 |
59.0 |
|
LY0011-0040 |
GPH 95 - 10 |
10.5 |
18.0 |
13.5 |
25.6 |
25.0 |
59.0 |
|
LY0011-0041 |
GPH 95 - 12 |
13.2 |
18.0 |
13.5 |
25.6 |
25.0 |
61.0 |
|
LY0011-0042 |
GPH 120 - 10 |
10.5 |
19.5 |
15.0 |
28.2 |
27.0 |
68.0 |
|
LY0011-0043 |
GPH 120 - 12 |
13.2 |
19.5 |
15.0 |
28.2 |
27.0 |
68.0 |
|
LY0011-0044 |
GPH 120 - 16 |
17.0 |
19.5 |
15.0 |
30.0 |
27.0 |
74.0 |
|
LY0011-0045 |
GPH 150 - 10 |
10.5 |
21.2 |
16.5 |
30.6 |
30.0 |
71.0 |
|
LY0011-0046 |
GPH 150 - 12 |
13.2 |
21.2 |
16.5 |
30.6 |
30.0 |
71.0 |
|
LY0011-0047 |
GPH 150 - 16 |
17.0 |
21.2 |
16.5 |
30.6 |
30.0 |
77.0 |
|
LY0011-0048 |
GPH 185 - 10 |
10.5 |
24.2 |
19.0 |
35.1 |
32.0 |
79.0 |
|
LY0011-0049 |
GPH 185 - 12 |
13.2 |
24.2 |
19.0 |
35.1 |
32.0 |
79.0 |
|
LY0011-0050 |
GPH 185 - 16 |
17.0 |
24.2 |
19.0 |
35.1 |
32.0 |
83.0 |
|
LY0011-0051 |
GPH 240 - 12 |
13.2 |
26.2 |
21.0 |
37.7 |
36.0 |
89.0 |
|
LY0011-0052 |
GPH 240 - 16 |
17.0 |
26.2 |
21.0 |
37.7 |
36.0 |
89.0 |
|
LY0011-0053 |
GPH 240 - 20 |
21.0 |
26.2 |
21.0 |
37.7 |
36.0 |
95.0 |
|
LY0011-0054 |
GPH 300 - 12 |
13.2 |
30.2 |
24.0 |
44.0 |
44.0 |
110.0 |
|
LY0011-0055 |
GPH 300 - 16 |
17.0 |
30.2 |
24.0 |
44.0 |
44.0 |
110.0 |
|
LY0011-0056 |
GPH 300 - 20 |
21.0 |
30.2 |
24.0 |
44.0 |
44.0 |
110.0 |
|
LY0011-0057 |
GPH 400 - 16 |
17.0 |
33.7 |
27.5 |
49.0 |
50.0 |
119.0 |
|
LY0011-0058 |
GPH 400 - 20 |
21.0 |
33.7 |
27.5 |
49.0 |
50.0 |
119.0 |
