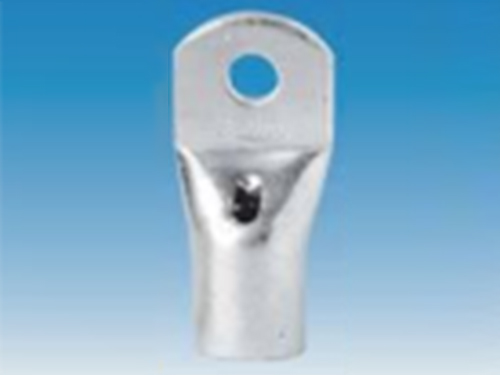

BT型铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途： 端子就是用于实现电气连接的一种配件产品， 工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的， 它其实就是一段封在绝缘塑料里面的金属片， 两端都有孔可以插入导线， 有螺丝用于紧固或者松开。比如两根导线，有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来， 并且可以随时断开， 而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0001-1001 |
B-T1.5-4 |
4.3 |
3.8 |
2.4 |
8.7 |
7.0 |
19.0 |
|
LY0001-1002 |
B-T1.5-5 |
5.3 |
3.8 |
2.4 |
8.7 |
7.0 |
19.0 |
|
LY0001-1003 |
B-T1.5-6 |
6.4 |
3.8 |
2.4 |
10.0 |
7.0 |
20.0 |
|
LY0001-1004 |
B-T2.5-4 |
4.3 |
4.0 |
2.7 |
8.7 |
7.0 |
19.0 |
|
LY0001-1005 |
B-T2.5-5 |
5.3 |
4.0 |
2.7 |
8.7 |
7.0 |
19.0 |
|
LY0001-1006 |
B-T2.5-6 |
6.4 |
4.0 |
2.7 |
10.3 |
7.0 |
21.0 |
|
LY0001-1007 |
B-T2.5-8 |
8.3 |
4.0 |
2.7 |
12.0 |
7.0 |
23.0 |
|
LY0001-1008 |
B-T4-4 |
4.3 |
4.5 |
3.1 |
8.7 |
9.5 |
21.5 |
|
LY0001-1009 |
B-T4-5 |
5.3 |
4.5 |
3.1 |
8.7 |
9.5 |
21.5 |
|
LY0001-1010 |
B-T4-6 |
6.4 |
4.5 |
3.1 |
10.3 |
9.5 |
23.5 |
|
LY0001-1011 |
B-T4-8 |
8.3 |
4.5 |
3.1 |
12.5 |
9.5 |
28.5 |
|
LY0001-1012 |
B-T6-4 |
4.3 |
5.2 |
3.8 |
10.3 |
10.0 |
26.0 |
|
LY0001-1013 |
B-T6-5 |
5.3 |
5.2 |
3.8 |
10.3 |
10.0 |
26.0 |
|
LY0001-1014 |
B-T6-6 |
6.4 |
5.2 |
3.8 |
10.3 |
10.0 |
26.0 |
|
LY0001-1015 |
B-T6-8 |
8.3 |
5.2 |
3.8 |
13.9 |
10.0 |
29.0 |
|
LY0001-1016 |
B-T6-10 |
10.5 |
5.2 |
3.8 |
13.9 |
10.0 |
29.0 |
|
LY0001-1017 |
B-T10-4 |
4.3 |
6.5 |
4.7 |
11.9 |
11.5 |
27.5 |
|
LY0001-1018 |
B-T10-5 |
5.3 |
6.5 |
4.7 |
11.9 |
11.5 |
27.5 |
|
LY0001-1019 |
B-T10-6 |
6.4 |
6.5 |
4.7 |
11.9 |
11.5 |
27.5 |
|
LY0001-1020 |
B-T10-8 |
8.3 |
6.5 |
4.7 |
13.5 |
11.5 |
30.5 |
|
LY0001-1021 |
B-T10-10 |
10.5 |
6.5 |
4.7 |
15.0 |
11.5 |
30.5 |
|
LY0001-1022 |
B-T10-12 |
13.2 |
6.5 |
4.7 |
17.0 |
11.5 |
34.0 |
|
LY0001-1023 |
B-T16-5 |
5.3 |
7.4 |
5.6 |
12.0 |
12.0 |
27.5 |
|
LY0001-1024 |
B-T16-6 |
6.4 |
7.4 |
5.6 |
12.0 |
12.0 |
27.5 |
|
LY0001-1025 |
B-T16-8 |
8.3 |
7.4 |
5.6 |
13.5 |
12.0 |
31.0 |
|
LY0001-1026 |
B-T16-10 |
10.5 |
7.4 |
5.6 |
16.0 |
12.0 |
32.0 |
|
LY0001-1027 |
B-T16-12 |
13.2 |
7.4 |
5.6 |
17.0 |
12.0 |
37.5 |
|
LY0001-1028 |
B-T25-6 |
6.4 |
9.1 |
7.1 |
14.0 |
13.5 |
34.0 |
|
LY0001-1029 |
B-T25-8 |
8.3 |
9.1 |
7.1 |
14.0 |
13.5 |
34.0 |
|
LY0001-1030 |
B-T25-10 |
10.5 |
9.1 |
7.1 |
16.0 |
13.5 |
37.0 |
|
LY0001-1031 |
B-T25-12 |
13.2 |
9.1 |
7.1 |
18.0 |
13.5 |
40.0 |
|
LY0001-1032 |
B-T35-6 |
6.4 |
10.5 |
8.2 |
16.0 |
16.0 |
39.0 |
|
LY0001-1033 |
B-T35-8 |
8.3 |
10.5 |
8.2 |
16.0 |
16.0 |
39.0 |
|
LY0001-1034 |
B-T35-10 |
10.5 |
10.5 |
8.2 |
16.0 |
16.0 |
43.0 |
|
LY0001-1035 |
B-T35-12 |
13.2 |
10.5 |
8.2 |
18.0 |
16.0 |
43.0 |
|
LY0001-1036 |
B-T35-14 |
14.5 |
10.5 |
8.2 |
20.0 |
16.0 |
48.0 |
|
LY0001-1037 |
B-T35-16 |
16.5 |
10.5 |
8.2 |
23.0 |
16.0 |
48.0 |
|
LY0001-1038 |
B-T40-6 |
6.4 |
10.8 |
9.0 |
16.3 |
17.0 |
44.0 |
|
LY0001-1039 |
B-T40-8 |
8.3 |
10.8 |
9.0 |
16.3 |
17.0 |
44.0 |
|
LY0001-1040 |
B-T40-10 |
10.5 |
10.8 |
9.0 |
16.3 |
17.0 |
44.0 |
|
LY0001-1041 |
B-T40-12 |
13.2 |
10.8 |
9.0 |
16.3 |
17.0 |
44.0 |
|
LY0001-1042 |
B-T50-6 |
6.4 |
12.0 |
9.5 |
17.5 |
20.0 |
45.0 |
|
LY0001-1043 |
B-T50-8 |
8.3 |
12.0 |
9.5 |
17.5 |
20.0 |
45.0 |
|
LY0001-1044 |
B-T50-10 |
10.5 |
12.0 |
9.5 |
17.5 |
20.0 |
49.0 |
|
LY0001-1045 |
B-T50-12 |
13.2 |
12.0 |
9.5 |
17.5 |
20.0 |
49.0 |
|
LY0001-1046 |
B-T50-14 |
14.5 |
12.0 |
9.5 |
22.0 |
20.0 |
54.0 |
|
LY0001-1047 |
B-T50-16 |
16.5 |
13.3 |
9.5 |
25.0 |
23.0 |
62.0 |
|
LY0001-1048 |
B-T50-20 |
21.0 |
13.3 |
9.5 |
30.0 |
23.0 |
68.0 |
|
LY0001-1049 |
B-T70-8 |
8.3 |
14.4 |
11.5 |
21.0 |
20.0 |
47.6 |
|
LY0001-1050 |
B-T70-10 |
10.5 |
14.4 |
11.5 |
21.0 |
20.0 |
51.6 |
