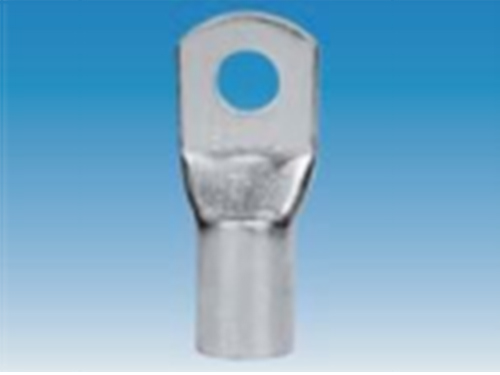

A-SC铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-2001 |
A-SC1.5-4 |
4.2 |
3.6 |
1.8 |
8.0 |
5.0 |
16 |
|
LY0002-2002 |
A-SC1.5-5 |
5.2 |
3.6 |
1.8 |
10.0 |
5.0 |
17 |
|
LY0002-2003 |
A-SC1.5-6 |
6.5 |
3.6 |
1.8 |
10.0 |
5.0 |
18 |
|
LY0002-2004 |
A-SC2.5-4 |
4.2 |
3.9 |
2.4 |
8.0 |
7.0 |
18 |
|
LY0002-2005 |
A-SC2.5-5 |
5.2 |
3.9 |
2.4 |
10.0 |
7.0 |
20 |
|
LY0002-2006 |
A-SC2.5-6 |
6.5 |
3.9 |
2.4 |
10.0 |
7.0 |
20 |
|
LY0002-2007 |
A-SC2.5-8 |
8.4 |
3.9 |
2.4 |
12.5 |
7.0 |
23 |
|
LY0002-2008 |
A- SC 4 - 4 |
4.2 |
4.7 |
3.1 |
10.0 |
7.0 |
20 |
|
LY0002-2009 |
A- SC 4 - 5 |
5.2 |
4.7 |
3.1 |
10.0 |
7.0 |
20 |
|
LY0002-2010 |
A- SC 4 - 6 |
6.5 |
4.7 |
3.1 |
10.0 |
7.0 |
20 |
|
LY0002-2011 |
A- SC 4 - 8 |
8.4 |
4.7 |
3.1 |
12.5 |
7.0 |
23 |
|
LY0002-2012 |
A- SC 6 - 4 |
4.2 |
5.4 |
3.8 |
10.0 |
9.0 |
24 |
|
LY0002-2013 |
A- SC 6 - 5 |
5.2 |
5.4 |
3.8 |
10.0 |
9.0 |
24 |
|
LY0002-2014 |
A- SC 6 - 6 |
6.5 |
5.4 |
3.8 |
12.0 |
9.0 |
24 |
|
LY0002-2015 |
A- SC 6 - 8 |
8.4 |
5.4 |
3.8 |
12.5 |
9.0 |
26 |
|
LY0002-2016 |
A- SC 6 - 10 |
10.5 |
6.0 |
4.0 |
15.0 |
9.0 |
28 |
|
LY0002-2017 |
A- SC 10 - 5 |
5.2 |
6.1 |
4.5 |
12.0 |
9.0 |
25 |
|
LY0002-2018 |
A- SC 10 - 6 |
6.5 |
6.1 |
4.5 |
12.0 |
9.0 |
25 |
|
LY0002-2019 |
A- SC 10 - 8 |
8.4 |
6.1 |
4.5 |
12.5 |
9.0 |
27 |
|
LY0002-2020 |
A- SC 10 - 10 |
10.5 |
6.1 |
4.5 |
15.0 |
9.0 |
29 |
|
LY0002-2021 |
A- SC 10 - 12 |
13 |
6.1 |
4.5 |
17.0 |
9.0 |
31 |
|
LY0002-2022 |
A- SC 16 - 5 |
5.2 |
7.0 |
5.4 |
12.0 |
12.0 |
30 |
|
LY0002-2023 |
A- SC 16 - 6 |
6.5 |
7.0 |
5.4 |
12.0 |
12.0 |
30 |
|
LY0002-2024 |
A- SC 16 - 8 |
8.4 |
7.0 |
5.4 |
12.5 |
12.0 |
30 |
|
LY0002-2025 |
A- SC 16 - 10 |
10.5 |
7.0 |
5.4 |
16.0 |
12.0 |
33 |
|
LY0002-2026 |
A- SC 16 - 12 |
13 |
7.0 |
5.4 |
17.0 |
12.0 |
35 |
|
LY0002-2027 |
A- SC 25 - 5 |
5.2 |
8.6 |
6.8 |
13.0 |
12.0 |
33 |
|
LY0002-2028 |
A- SC 25 - 6 |
6.5 |
8.6 |
6.8 |
13.0 |
12.0 |
33 |
|
LY0002-2029 |
A- SC 25 - 8 |
8.4 |
8.6 |
6.8 |
15.0 |
12.0 |
33 |
|
LY0002-2030 |
A- SC 25 - 10 |
10.5 |
8.6 |
6.8 |
18.0 |
12.0 |
34 |
|
LY0002-2031 |
A- SC 25 - 12 |
13 |
8.6 |
6.8 |
18.0 |
12.0 |
35 |
|
LY0002-2032 |
A- SC 25 - 14 |
15 |
8.6 |
6.8 |
20.0 |
12.0 |
38 |
|
LY0002-2033 |
A- SC 35 - 5 |
5.2 |
10.4 |
8.2 |
16.0 |
14.0 |
38 |
|
LY0002-2034 |
A- SC 35 - 6 |
6.5 |
10.4 |
8.2 |
16.0 |
14.0 |
38 |
|
LY0002-2035 |
A- SC 35 - 8 |
8.4 |
10.4 |
8.2 |
16.0 |
14.0 |
38 |
|
LY0002-2036 |
A- SC 35 - 10 |
10.5 |
10.4 |
8.2 |
18.0 |
14.0 |
39 |
|
LY0002-2037 |
A- SC 35 - 12 |
13 |
10.4 |
8.2 |
19.0 |
14.0 |
40.5 |
|
LY0002-2038 |
A- SC 35 - 14 |
15 |
10.4 |
8.2 |
20.0 |
14.0 |
42 |
|
LY0002-2039 |
A- SC 50 - 6 |
6.5 |
12.2 |
9.5 |
17.8 |
16.0 |
45 |
|
LY0002-2040 |
A- SC 50 - 8 |
8.4 |
12.2 |
9.5 |
17.8 |
16.0 |
45 |
|
LY0002-2041 |
A- SC 50 - 10 |
10.5 |
12.2 |
9.5 |
17.8 |
16.0 |
45 |
|
LY0002-2042 |
A- SC 50 - 12 |
13 |
12.2 |
9.5 |
20.0 |
16.0 |
45 |
|
LY0002-2043 |
A- SC 50 - 14 |
15 |
12.2 |
9.5 |
22.0 |
16.0 |
46 |
|
LY0002-2044 |
A- SC 50 - 16 |
17 |
12.2 |
9.5 |
24.0 |
16.0 |
47 |
|
LY0002-2045 |
A- SC 70 - 8 |
8.4 |
14.4 |
11.2 |
21.0 |
20.0 |
52 |
|
LY0002-2046 |
A- SC 70 - 10 |
10.5 |
14.4 |
11.2 |
21.0 |
20.0 |
52 |
|
LY0002-2047 |
A- SC 70 - 12 |
13 |
14.4 |
11.2 |
21.0 |
20.0 |
52 |
|
LY0002-2048 |
A- SC 70 - 14 |
15 |
14.4 |
11.2 |
21.0 |
20.0 |
52 |
|
LY0002-2049 |
A- SC 70 - 16 |
17 |
14.4 |
11.2 |
25.0 |
20.0 |
53 |
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-2050 |
A-SC95-8 |
8.4 |
17.1 |
13.5 |
25.0 |
23.0 |
58 |
|
LY0002-2051 |
A-SC95-10 |
10.5 |
17.1 |
13.5 |
25.0 |
23.0 |
58 |
|
LY0002-2052 |
A-SC95-12 |
13 |
17.1 |
13.5 |
25.0 |
23.0 |
58 |
|
LY0002-2053 |
A-SC95-14 |
15 |
17.1 |
13.5 |
25.0 |
23.0 |
58 |
|
LY0002-2054 |
A-SC95-16 |
17 |
17.1 |
13.5 |
25.0 |
23.0 |
58 |
|
LY0002-2055 |
A-SC120-8 |
8.4 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2056 |
A-SC120-10 |
10.5 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2057 |
A-SC120-12 |
13 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2058 |
A-SC120-14 |
15 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2059 |
A-SC120-16 |
17 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2060 |
A-SC120-20 |
21 |
19.0 |
15 |
27.5 |
22.0 |
63 |
|
LY0002-2061 |
A-SC150-8 |
8.4 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2062 |
A-SC150-10 |
10.5 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2063 |
A-SC150-12 |
13 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2064 |
A-SC150-14 |
15 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2065 |
A-SC150-16 |
17 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2066 |
A-SC150-20 |
21 |
20.8 |
16.5 |
30.0 |
26.0 |
70 |
|
LY0002-2067 |
A-SC185-10 |
10.5 |
23.1 |
18.5 |
33.5 |
32.0 |
75 |
|
LY0002-2068 |
A-SC185-12 |
13 |
23.1 |
18.5 |
33.5 |
32.0 |
75 |
|
LY0002-2069 |
A-SC185-14 |
15 |
23.1 |
18.5 |
33.5 |
32.0 |
75 |
|
LY0002-2070 |
A-SC185-16 |
17 |
23.1 |
18.5 |
33.5 |
32.0 |
75 |
|
LY0002-2071 |
A-SC185-20 |
21 |
23.1 |
18.5 |
33.5 |
32.0 |
75 |
|
LY0002-2072 |
A-SC240-10 |
10.5 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2073 |
A-SC240-12 |
13 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2074 |
A-SC240-14 |
15 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2075 |
A-SC240-16 |
17 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2076 |
A-SC240-18 |
19 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2077 |
A-SC240-20 |
21 |
26.0 |
21.0 |
38.0 |
38.0 |
90 |
|
LY0002-2078 |
A-SC300-10 |
10.5 |
29.4 |
23.5 |
43.0 |
42.0 |
98 |
|
LY0002-2079 |
A-SC300-12 |
13 |
29.4 |
23.5 |
43.0 |
42.0 |
98 |
|
LY0002-2080 |
A-SC300-14 |
15 |
29.4 |
23.5 |
43.0 |
42.0 |
98 |
|
LY0002-2081 |
A-SC300-16 |
17 |
29.4 |
23.5 |
43.0 |
42.0 |
98 |
|
LY0002-2082 |
A-SC300-20 |
21 |
29.4 |
23.5 |
43.0 |
42.0 |
98 |
|
LY0002-2083 |
A-SC400-10 |
10.5 |
35.8 |
28.5 |
52.0 |
44.0 |
110 |
|
LY0002-2084 |
A-SC400-12 |
13 |
35.8 |
28.5 |
52.0 |
44.0 |
110 |
|
LY0002-2085 |
A-SC400-14 |
15 |
35.8 |
28.5 |
52.0 |
44.0 |
110 |
|
LY0002-2086 |
A-SC400-16 |
17 |
35.8 |
28.5 |
52.0 |
44.0 |
110 |
|
LY0002-2087 |
A-SC400-20 |
21 |
35.8 |
28.5 |
52.0 |
44.0 |
110 |
|
LY0002-2088 |
A-SC500-10 |
10.5 |
38.2 |
30.0 |
55.0 |
48.0 |
120 |
|
LY0002-2089 |
A-SC500-12 |
13 |
38.2 |
30.0 |
55.0 |
48.0 |
120 |
|
LY0002-2090 |
A-SC500-14 |
15 |
38.2 |
30.0 |
55.0 |
48.0 |
120 |
|
LY0002-2091 |
A-SC500-16 |
17 |
38.2 |
30.0 |
55.0 |
48.0 |
120 |
|
LY0002-2092 |
A-SC500-20 |
21 |
38.2 |
30.0 |
55.0 |
48.0 |
120 |
|
LY0002-2093 |
A-SC630-10 |
10.5 |
44.1 |
35.0 |
63.5 |
56.0 |
140 |
|
LY0002-2094 |
A-SC630-12 |
13 |
44.1 |
35.0 |
63.5 |
56.0 |
140 |
|
LY0002-2095 |
A-SC630-14 |
15 |
44.1 |
35.0 |
63.5 |
56.0 |
140 |
|
LY0002-2096 |
A-SC630-16 |
17 |
44.1 |
35.0 |
63.5 |
56.0 |
140 |
|
LY0002-2097 |
A-SC630-20 |
21 |
44.1 |
35.0 |
63.5 |
56.0 |
140 |
